doi:10.12118/j.issn.1000-6060.2024.480

Abstract:

The analysis of the spatial and temporal variations in potential evapotranspiration and its sensitivity to meteorological factors in different dry and wet zones is essential for optimizing water resource management in agriculture, animal husbandry, forestry, and water resource planning and allocation, as well as for predicting the impact of climate change on water resources. Given the diverse dry and wet conditions and climatic conditions in Inner Mongolia, China, a region significantly affected by climate change, the sensitivity coefficients of potential evapotranspiration to air temperature, wind speed, water vapor pressure, and sunshine hours were calculated based on the Penman-Monteith formula of the FAO for 76 meteorological stations in Inner Mongolia from 1961 to 2023. The dominant factors influencing potential evapotranspiration in different dry and wet zones and its quantitative response to climate change were investigated. The results indicate that: (1) Spatially, potential evapotranspiration generally decreases from west to east in the longitudinal direction and from south to north in the latitudinal direction. In arid and semi-arid zones, the trend in potential evapotranspiration is not pronounced, whereas in semihumid zones, an increasing trend is observed. (2) The sensitivity of potential evapotranspiration to meteorological factors follows this order: maximum air temperature is the most sensitive factor, followed by water vapor pressure, wind speed, and minimum air temperature, with sunshine hours being the least sensitive. (3) The sensitivity coefficients of all meteorological factors exhibit consistent trends across different dry and wet zones. The temperature sensitivity coefficient and vapor pressure sensitivity coefficient show a decreasing trend, whereas the wind speed sensitivity coefficient and sunshine hours sensitivity coefficient display an increasing trend, with significant changes observed for the water vapor pressure sensitivity coefficient and wind speed sensitivity coefficient. (4) Maximum and minimum air temperatures contribute positively to changes in potential evapotranspiration, whereas wind speed, water vapor pressure, and sunshine hours contribute negatively. Among these, sunshine hours have the least influence on potential evapotranspiration in all dry and wet zones. Wind speed is the dominant factor driving potential evapotranspiration changes in arid and semi-arid zones, while maximum air temperature is the dominant factor in semihumid zones.

Key words: potential evapotranspiration, sensitivity analysis, dominant factor, dry and wet zones, Inner Mongolia

WANG Zhichun, WANG Yanping, XU Zhenyu, XUE Wenchao. Changes characteristics and dominant factors of potential evapotranspiration in different dry and wet zones of Inner Mongolia[J].Arid Land Geography, 2025, 48(4): 612-622.

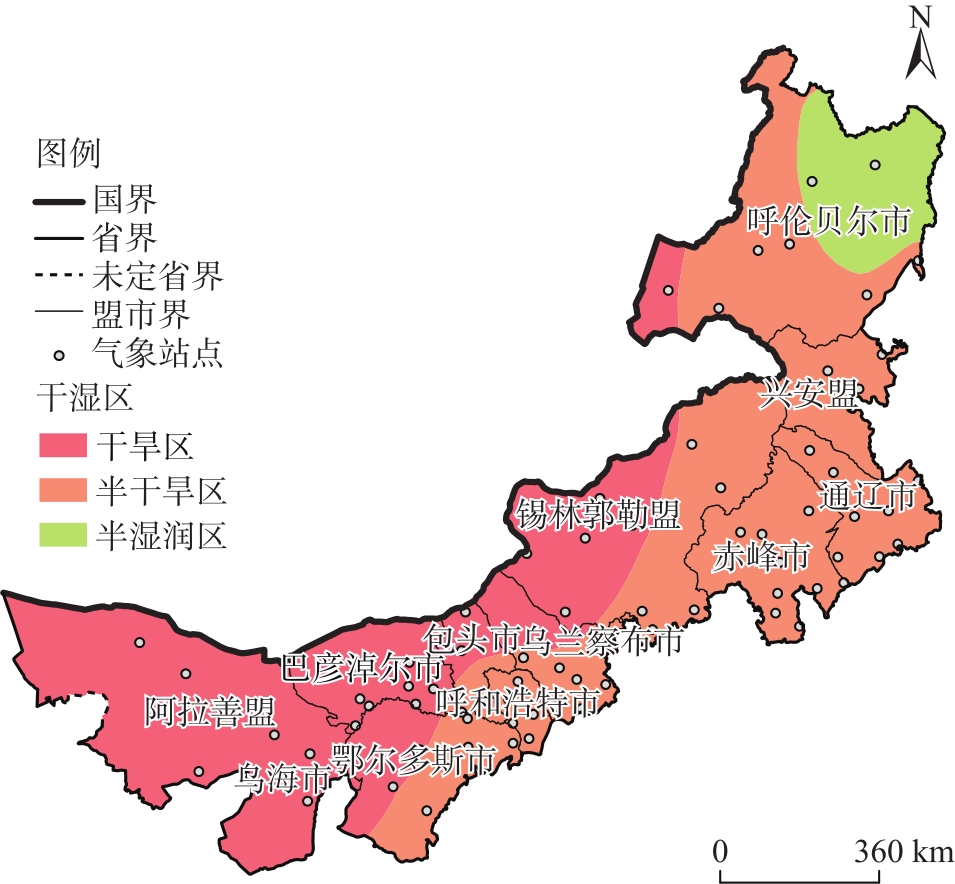

Fig. 1

Fig. 2

Tab. 1

Fig. 3

Fig. 4

Fig. 5

Tab. 2

[1]	张宝忠, 许迪, 刘钰, 等. 多尺度蒸散发估测与时空尺度拓展方法研究进展[J]. 农业工程学报, 2015, 31(6): 8-16.
	[Zhang Baozhong, Xu Di, Liu Yu, et al. Review of multi-scale evapotranspiration estimation and spatio-temporal scale expansion[J]. Transactions of the Chinese Society of Agricultural Engineering, 2015, 31(6): 8-16.]
[2]	Jung M, Reichstein M, Ciais P, et al. Recent decline in the global land evapotranspiration trend due to limited moisture supply[J]. Nature, 2010, 467(7318): 951-954.
[3]	Zhao L L, Xia J, Xu C Y, et al. Evapotranspiration estimation methods in hydrological models[J]. Journal of Geographical Sciences, 2013, 23(2): 359-369. doi: 10.1007/s11442-013-1015-9
[4]	Gu L L, Hu Z Y, Yao J M, et al. Actual and reference evapotranspiration in a cornfield in the Zhangye oasis, northwestern China[J]. Water, 2017, 9(7): 499, doi: 10.3390/w9070499.
[5]	Allen R G, Pereira L S, Raes D, et al. Crop evapotranspiration-guidelines for computing crop water requirements: FAO irrigation and drainage paper 56[M]. Rome: Food and Agriculture Organization of the United Nations, 1998.
[6]	Adeyeri O E, Ishola K A. Variability and trends of actual evapotranspiration over west Africa: The role of environmental drivers[J]. Agricultural and Forest Meteorology, 2021, 308: 108574, doi: 10.1016/j.agrformet.2021.108574.
[7]	Chen D, Gao G, Xu C Y, et al. Comparison of Thornthwaite method and pan data with the standard Penman-Monteith estimates of potential evapotranspiration for China[J]. Climate Research, 2005, 28: 123-132.
[8]	刘昌明, 张丹. 中国地表潜在蒸散发敏感性的时空变化特征分析[J]. 地理学报, 2011, 66(5): 579-588.
	[Liu Changming, Zhang Dan. Temporal and spatial change analysis of the sensitivity of potential evapotranspiration to meteorological influencing factors in China[J]. Scientia Geographica Sinica, 2011, 66(5): 579-588.]
[9]	秦年秀, 陈喜, 薛显武, 等. 潜在蒸散发量计算公式在贵州省适用性分析[J]. 水科学进展, 2010, 21(3): 357-363.
	[Qin Nianxiu, Chen Xi, Xue Xianwu, et al. An applicability study of potential evapotranspiration models in Guizhou Province[J]. Advances in Water Science, 2010, 21(3): 357-363.]
[10]	陈晓菲, 任立良, 江善虎, 等. 赣江上游流域蒸散发量影响因素的遥感分析[J]. 水资源保护, 2014, 30(2): 33-37.
	[Chen Xiaofei, Ren Liliang, Jiang Shanhu, et al. RS-based analysis of factors influencing evapotranspiration in upstream region of Ganjiang Basin[J]. Water Resources Protection, 2014, 30(2): 33-37.]
[11]	朱国锋, 何元庆, 蒲焘, 等. 1960—2009年横断山区潜在蒸发量时空变化[J]. 地理学报, 2011, 66(7): 905-916.
	[Zhu Guofeng, He Yuanqing, Pu Tao, et al. Spatial distribution and temporal trends in potential evaporation over Hengduan Mountains region from 1960 to 2009[J]. Scientia Geographica Sinica, 2011, 66(7): 905-916.]
[12]	张永生, 陈喜, 高满, 等. 不同气候区潜在蒸散发全局敏感性分析[J]. 河海大学学报(自然科学版), 2017, 45(2): 137-144.
	[Zhang Yongsheng, Chen Xi, Gao Man, et al. Global sensitivity analysis of potential evapotranspiration in different climatic regions[J]. Journal of Hohai University (Natural Sciences Edition), 2017, 45(2): 137-144.]
[13]	Zhao Y, Chen Y N, Wu C Y, et al. Exploring the contribution of environmental factors to evapotranspiration dynamics in the Three-River-Source region, China[J]. Journal of Hydrology, 2023, 626: 130222, doi: 10.1016/j.jhydrol.2023.130222.
[14]	李红阳, 陈天宇, 王圣杰, 等. 1979—2021年新疆昆仑山北坡潜在蒸散时空变化研究[J]. 干旱区地理, 2024, 47(9): 1443-1450. doi: 10.12118/j.issn.1000-6060.2024.107
	[Li Hongyang, Chen Tianyu, Wang Shengjie, et al. Spatiotemporal variations of potential evapotranspiration on the northern slope of the Kunlun Mountains in Xinjiang from 1979 to 2021[J]. Arid Land Geography, 2024, 47(9): 1443-1450.] doi: 10.12118/j.issn.1000-6060.2024.107
[15]	封志明, 孙小舟, 杨艳昭. 西辽河流域1952年—2007年参考作物蒸散量的变化趋势[J]. 资源科学, 2009, 31(3): 479-484.
	[Feng Zhiming, Sun Xiaozhou, Yang Yanzhao. Change tendency of reference crop evapotranspiration in Xiliaohe Basin[J]. Resources Science, 2009, 31(3): 479-484.]
[16]	李媛, 谢应忠, 王亚娟. 宁夏中部干旱带潜在蒸散量变化及影响因素[J]. 生态学报, 2016, 36(15): 4680-4688.
	[Li Yuan, Xie Yingzhong, Wang Yajuan. Dynamic change and influencing factors of potential evapotranspiration in the middle arid region of Ningxia[J]. Acta Ecologica Sinica, 2016, 36(15): 4680-4688.]
[17]	周秉荣, 李凤霞, 肖宏斌, 等. 三江源区潜在蒸散时空分异特征及气候归因[J]. 自然资源学报, 2014, 29(12): 2068-2077.
	[Zhou Bingrong, Li Fengxia, Xiao Hongbin, et al. Characteristics and climate explanation of spatial distribution and temporal variation of potential evapotranspiration in headwaters of the Three Rivers[J]. Journal of Natural Resources, 2014, 29(12): 2068-2077.] doi: 10.11849/zrzyxb.2014.12.008
[18]	王佳爽, 高晓瑜, 李为萍, 等. 塔布河流域潜在蒸散量时空变化特征及成因[J]. 干旱区研究, 2024, 41(9): 1538-1547. doi: 10.13866/j.azr.2024.09.10
	[Wang Jiashuang, Gao Xiaoyu, Li Weiping, et al. Spatial-temporal variation characteristics and attribution analysis of potential evapotranspiration in the Tabu River Basin[J]. Arid Zone Research, 2024, 41(9): 1538-1547.] doi: 10.13866/j.azr.2024.09.10
[19]	吴霜, 延晓冬, 杨伯钢, 等. 中国潜在蒸散量时空变化分析[J]. 北京测绘, 2022, 36(11): 1460-1464.
	[Wu Shuang, Yan Xiaodong, Yang Bogang, et al. The spatial and temporal distributions of potential evapotranspiration in China[J]. Beijing Surveying and Mapping, 2022, 36(11): 1460-1464.]
[20]	Hupet F, Vanclooster M. Effect of the sampling frequency of meteorological variables on the estimation of the reference evapotranspiration[J]. Journal of Hydrology, 2001, 243: 192-204.
[21]	曾丽红, 宋开山, 张柏, 等. 东北地区参考作物蒸散量对主要气象要素的敏感性分析[J]. 中国农业气象, 2010, 31(1): 11-18.
	[Zeng Lihong, Song Kaishan, Zhang Bai, et al. Sensitive analysis on reference evapotranspiration to key meteorological factors in northeast China[J]. Chinese Journal of Agrometeorology, 2010, 31(1): 11-18.]
[22]	王大刚, 于洋, Malik I, 等. 塔里木盆地生长季 ET₀的时空变化特征及其敏感性分析[J]. 中国农业气象, 2022, 43(5): 340-352.
	[Wang Dagang, Yu Yang, Malik I, et al. Spatiotemporal variation and analysis sensitivity of reference evapotranspiration during crop growing season in the Tarim Basin[J]. Chinese Journal of Agrometeorology, 2022, 43(5): 340-352.]
[23]	Gong L B, Xu C Y, Chen D L, et al. Sensitivity of the Penman-Monteith reference evapotranspiration to key climatic variables in the Changjiang Basin[J]. Journal of Hydrology, 2006, 329: 620-629.
[24]	刘小莽, 郑红星, 刘昌明, 等. 海河流域潜在蒸散发的气候敏感性分析[J]. 资源科学, 2009, 31(9): 1470-1476.
	[Liu Xiaomang, Zheng Hongxing, Liu Changming, et al. Sensitivity of the potential evapotranspiration to key climatic variables in the Haihe River Basin[J]. Resources Science, 2009, 31(9): 1470-1476.]
[25]	曹永强, 高璐, 袁立婷, 等. 辽宁省潜在蒸散发量及其敏感性规律分析[J]. 地理科学, 2017, 37(9): 1422-1429. doi: 10.13249/j.cnki.sgs.2017.09.015
	[Cao Yongqiang, Gao Lu, Yuan Liting, et al. Analysis of potential evaporation and its sensitivity in Liaoning Province[J]. Scientia Geographica Sinica, 2017, 37(9): 1422-1429.] doi: 10.13249/j.cnki.sgs.2017.09.015
[26]	王鹏涛, 延军平, 蒋冲, 等. 华北平原参考作物蒸散量时空变化及其影响因素分析[J]. 生态学报, 2014, 34(19): 5589-5599.
	[Wang Pengtao, Yan Junping, Jiang Chong, et al. Spatial and temporal variations of reference crop evapotranspiration and its influencing factors in the North China Plain[J]. Acta Ecologica Sinica, 2014, 34(19): 5589-5599.]
[27]	马亚丽, 牛最荣, 孙栋元. 河西走廊潜在蒸散发时空格局变化与气象因素的关系[J]. 干旱区地理, 2024, 47(2): 192-202. doi: 10.12118/j.issn.1000－6060.2023.108
	[Ma Yali, Niu Zuirong, Sun Dongyuan. Relationship between changes in spatial and temporal patterns of potential evapotranspiration and meteorological factors in Hexi Corridor[J]. Arid Land Geography, 2024, 47(2): 192-202.] doi: 10.12118/j.issn.1000－6060.2023.108
[28]	王炳亮, 李国胜. 1961—2010年辽河三角洲参考蒸散发变化特征及主导因子分析[J]. 地理科学, 2014, 34(10): 1233-1238. doi: 10.13249/j.cnki.sgs.2014.010.1233
	[Wang Bingliang, Li Guosheng. Quantification of the reasons for reference evapotranspiration changes over the Liaohe Delta, northeast China[J]. Scientia Geographica Sinica, 2014, 34(10): 1233-1238.] doi: 10.13249/j.cnki.sgs.2014.010.1233
[29]	中国气象局气候变化中心. 中国气候变化蓝皮书(2024)[M]. 北京: 科学技术出版社, 2024: 1-5.
	[China Meteorological Administration Climate Change Center. Blue book on climate change in China 2024[M]. Beijing: China Science and Technology Press, 2024: 1-5.]
[30]	王志春, 陈素华, 李超. 近57年西辽河流域气候变化特征分析[J]. 内蒙古农业大学学报(自然科学版), 2020, 41(1): 42-48.
	[Wang Zhichun, Chen Suhua, Li Chao. Analysis of the climatic change characteristics in the Xiliao River Basin in recent 57 years[J]. Journal of Inner Mongolia Agricultural University (Natural Science Edition), 2020, 41(1): 42-48.]
[31]	苏立娟, 李喜仓, 邓晓东. 1951—2005年内蒙古东部气候变化特征分析[J]. 气象与环境学报, 2008, 24(5): 25-28.
	[Su Lijuan, Li Xicang, Deng Xiaodong. Climate change characteristics of eastern Inner Mongolia from 1951 to 2005[J]. Journal of Meteorology and Environment, 2008, 24(5): 25-28.]
[32]	李静, 何清, 姚俊强, 等. 内蒙古西部地区气候变化特征及影响因子分析[J]. 干旱区资源与环境, 2014, 28(5): 186-191.
	[Li Jing, He Qing, Yao Junqiang, et al. The characteristics of climate change and the impact factors analysis in the western part of Inner Mongolia[J]. Journal of Arid Land Resources and Environment, 2014, 28(5): 186-191.]
[33]	安莉娟. 1971—2010年内蒙古干湿变化特征及对水资源影响[J]. 冰川冻土, 2016, 38(3): 732-740. doi: 10.7522/j.issn.1000-0240.2016.0082
	[An Lijuan. Aridity variation and its impact on water resources in Inner Mongolia from 1971 through 2010[J]. Journal of Glaciology and Geocryology, 2016, 38(3): 732-740.] doi: 10.7522/j.issn.1000-0240.2016.0082
[34]	张存厚, 王明玖, 李兴华, 等. 近30年来内蒙古地区气候干湿状况时空分布特征[J]. 干旱区资源与环境, 2011, 25(8): 70-75.
	[Zhang Cunhou, Wang Mingjiu, Li Xinghua, et al. The characteristics of temporal and spatial distribution of climate dry-wet conditions over Inner Mongolia in recent 30 years[J]. Journal of Arid Land Resources and Environment, 2011, 25(8): 70-75.]
[35]	董晓宇, 姚华荣, 戴君虎, 等. 2000—2017年内蒙古荒漠草原植被物候变化及对净初级生产力的影响[J]. 地理科学进展, 2020, 39(1): 24-35. doi: 10.18306/dlkxjz.2020.01.003
	[Dong Xiaoyu, Yao Huarong, Dai Junhu, et al. Phenological changes of desert steppe vegetation and its effect on net primary productivity in Inner Mongolia from 2000 to 2017[J]. Progress in Geography, 2020, 39(1): 24-35.] doi: 10.18306/dlkxjz.2020.01.003
[36]	张存杰, 刘海波, 宋艳玲, 等. GB/T 20481-2017. 气象干旱等级[S]. 北京: 中国标准出版社, 2017.
	[Zhang Cunjie, Liu Haibo, Song Yanling, et al. GB/T 20481-2017. Grades of meteorological drought[S]. Beijing: Standards Press of China, 2017.]
[37]	McCuen R H. A sensitivity and error analysis of procedures used for estimating evaporation[J]. Water Resource Bulletin, 1974, 10(3): 486-497.
[38]	梁丽乔, 李丽娟, 张丽, 等. 松嫩平原西部生长季参考作物蒸散发的敏感性分析[J]. 农业工程学报, 2008, 24(5): 1-5.
	[Liang Liqiao, Li Lijuan, Zhang Li, et al. Sensitivity of the reference crop evapotranspiration in growing season in the west Songnen Plain[J]. Transactions of the Chinese Society of Agricultural Engineering, 2008, 24(5): 1-5.]
[39]	曹雯, 申双和, 段春锋. 西北地区生长季参考作物蒸散变化成因的定量分析[J]. 地理学报, 2011, 66(3): 407-415.
	[Cao Wen, Shen Shuanghe, Duan Chunfeng. Quantification of the causes for reference crop evapotranspiration changes in growing season in northwest China[J]. Acta Geographica Sinica, 2011, 66(3): 407-415.]
[40]	Huntington T G. Evidence for intensification of the global water cycle: Review and synthesis[J]. Journal of Hydrology, 2006, 319(1-4): 83-95.

Viewed

Full text

From	Others	local

Times	11	39
Rate	22%	78%

Abstract

Just accepted	Online first	Issue

0	0	64

From	Others	local

Times	33	31
Rate	52%	48%

Cited

Web of Science	Crossref	ScienceDirect	Search for Citations in Google Scholar >>


This page requires you have already subscribed to WoS.

Shared

干湿区	$E T 0$ /mm·(10a)^-1	$T m a x$ /℃·(10a)^-1	$T m i n$ /℃·(10a)^-1	U/m·s^-1·(10a)^-1	V/kPa·(10a)^-1	N/h·(10a)^-1
干旱区	0.003	0.328^**	0.519^**	-0.133^**	0.032^*	-0.088^**
半干旱区	-0.003	0.281^**	0.459^**	-0.159^**	0.049^*	-0.079^**
半湿润区	0.018^**	0.384^**	0.412^**	-0.063^**	0.090^**	-0.001

干湿区	气象因子贡献/%					总贡献/%	$E T 0$ 实际变化/%	主导因子
干湿区	$T m a x$	$T m i n$	$U$	$V$	$N$	总贡献/%	$E T 0$ 实际变化/%	主导因子
干旱区	7.05	4.40	-7.63	-2.06	-1.17	0.59	0.55	$U$
半干旱区	6.81	5.02	-10.04	-1.43	-1.08	-0.72	-0.68	$U$
半湿润区	10.57	5.01	-3.34	-6.12	0.00	6.12	6.31	$T m a x$
