伊犁河流域多时间尺度气象干旱时空特征

doi:10.12118/j.issn.1000-6060.2025.377

摘要/Abstract

摘要：

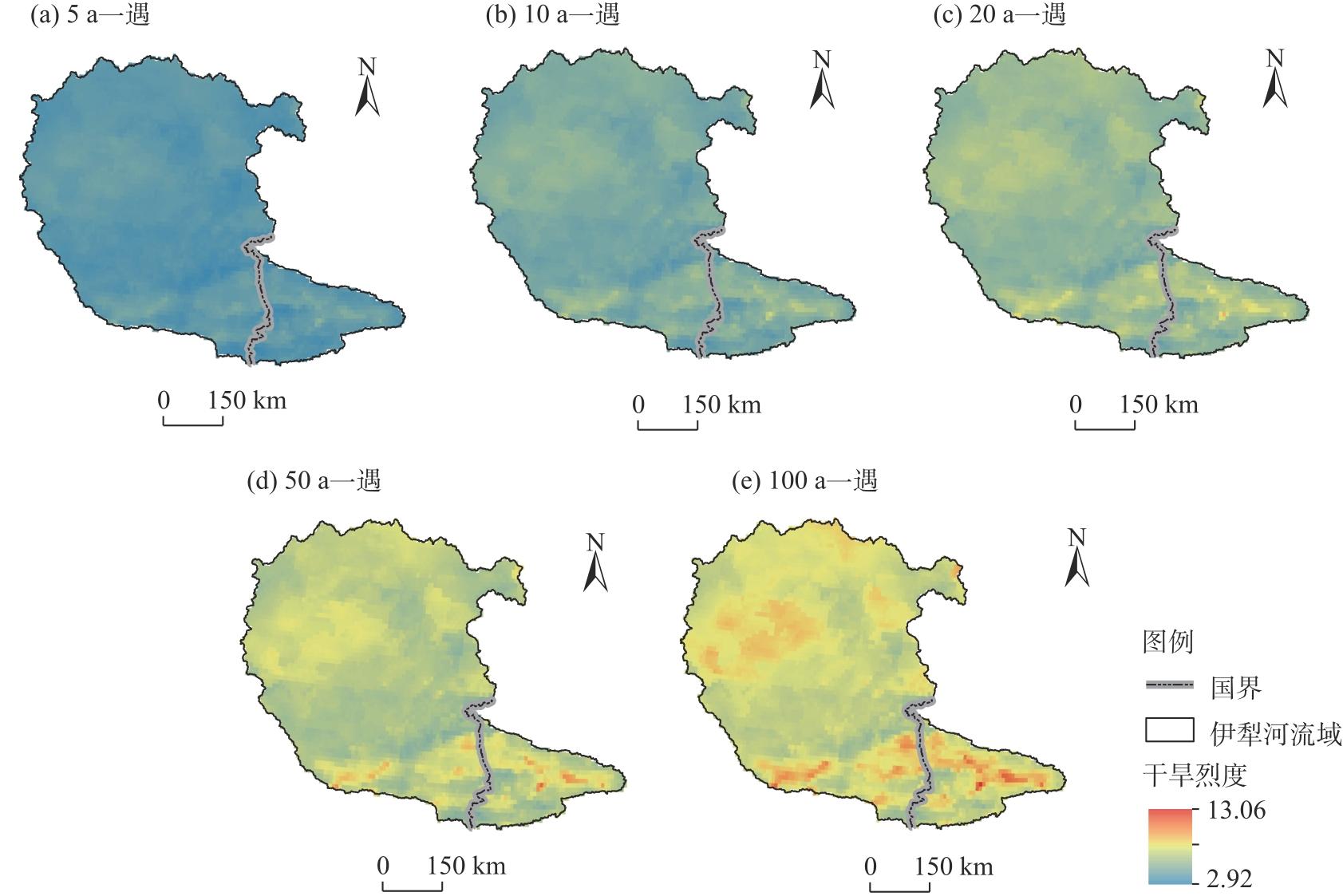

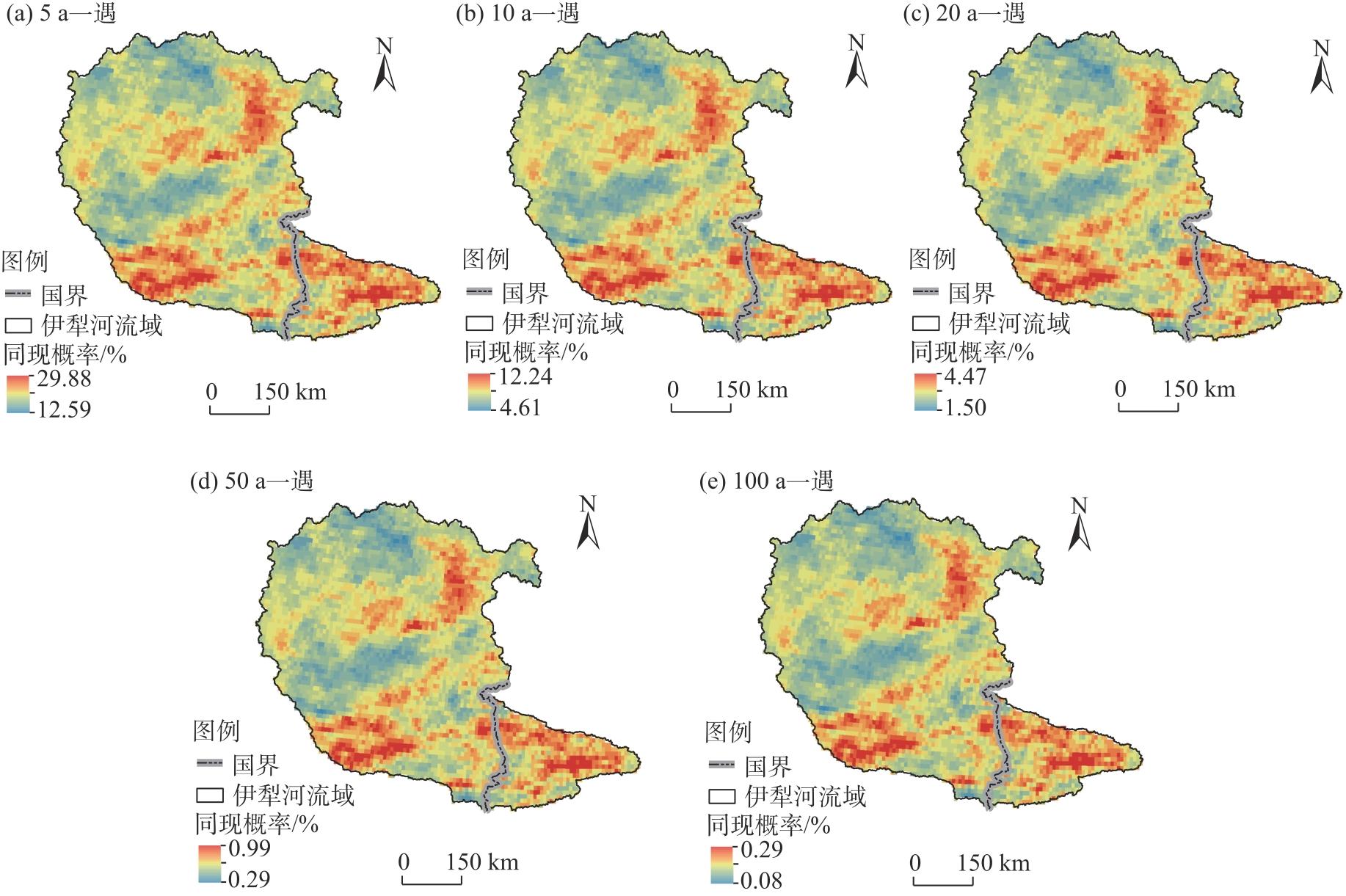

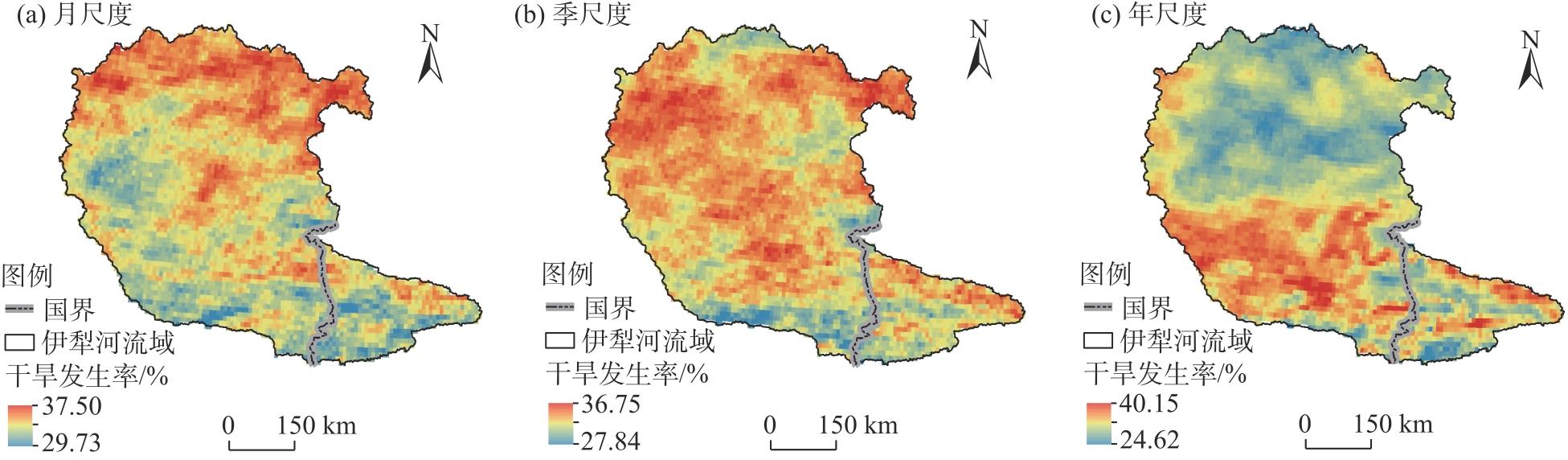

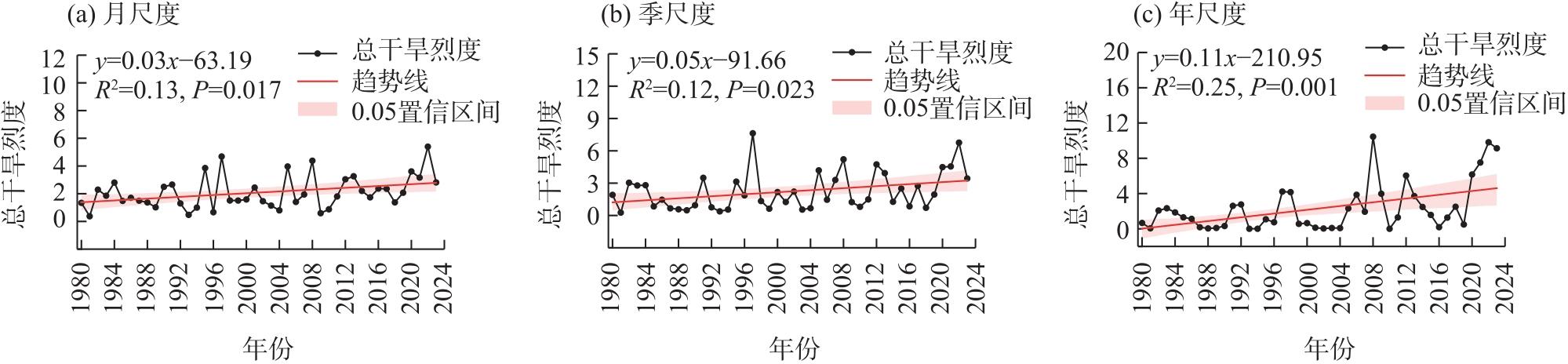

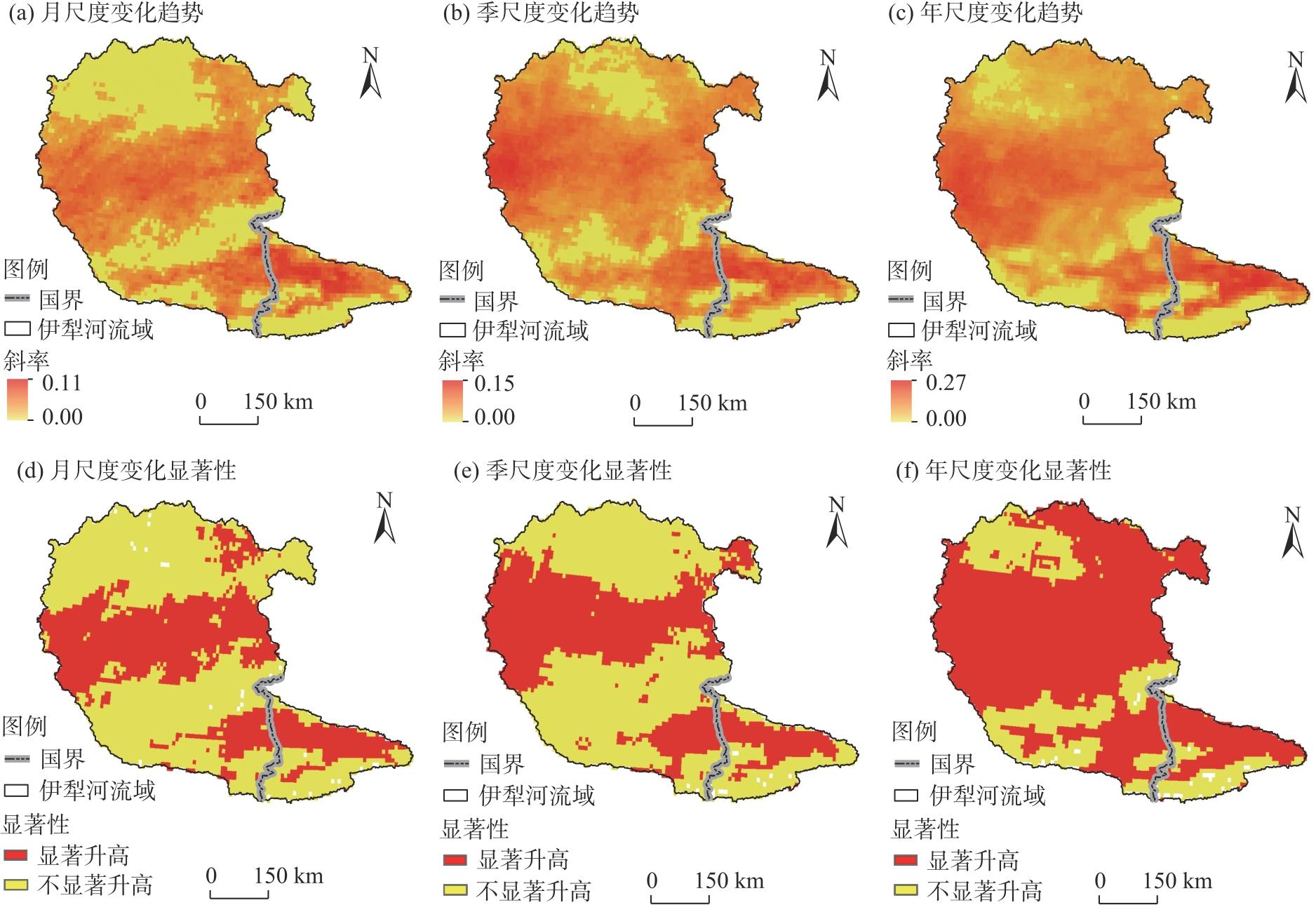

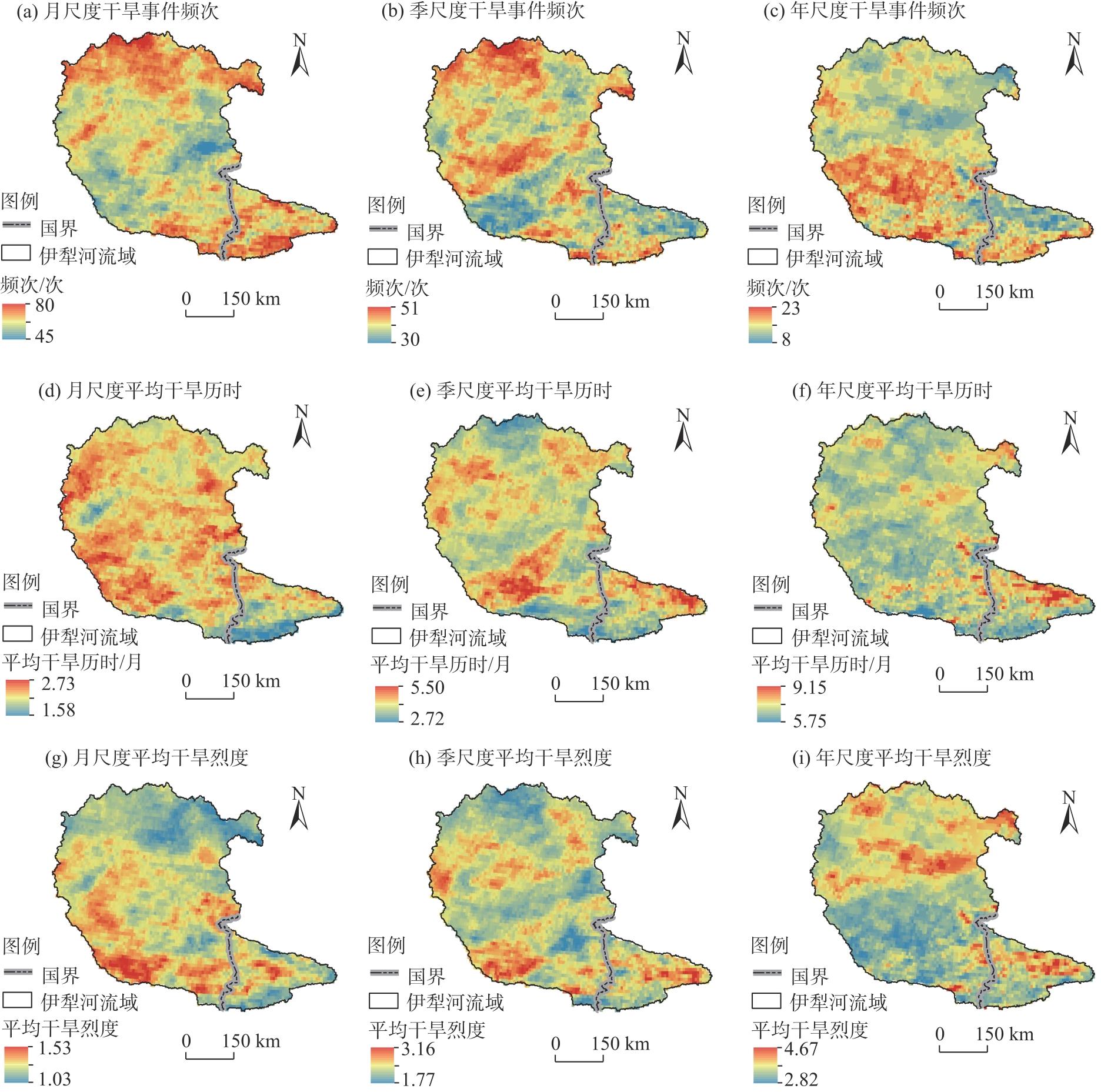

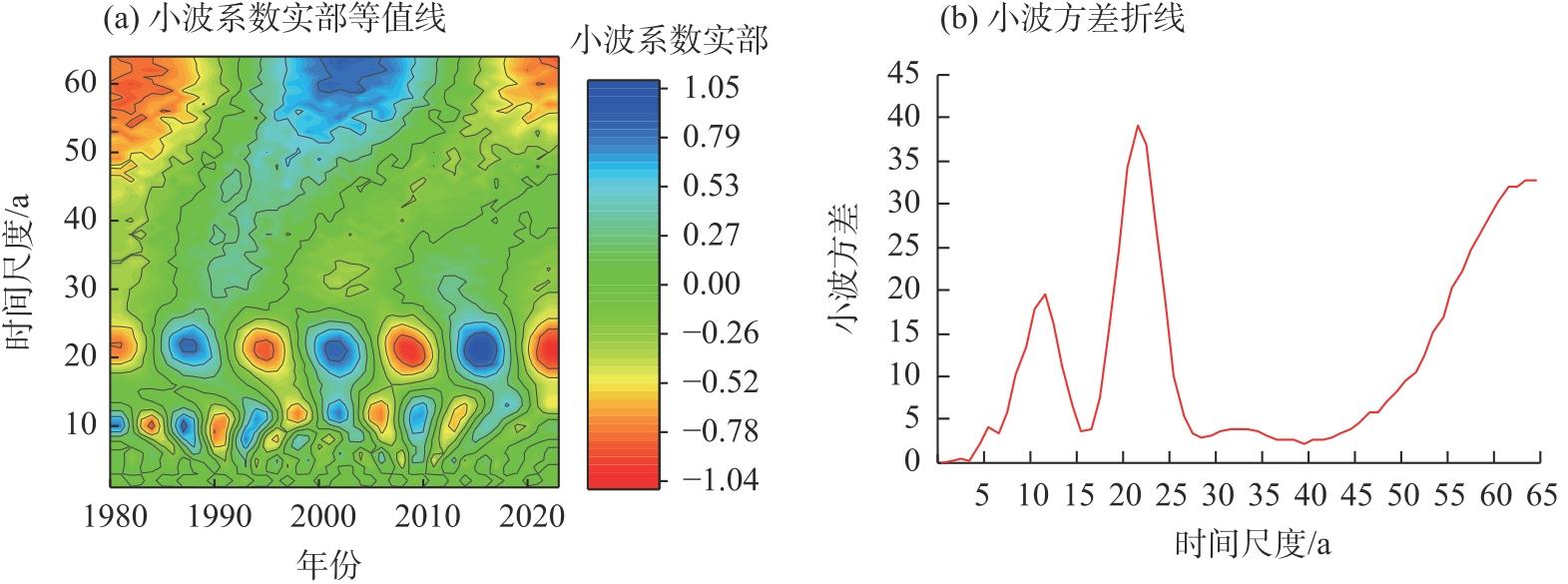

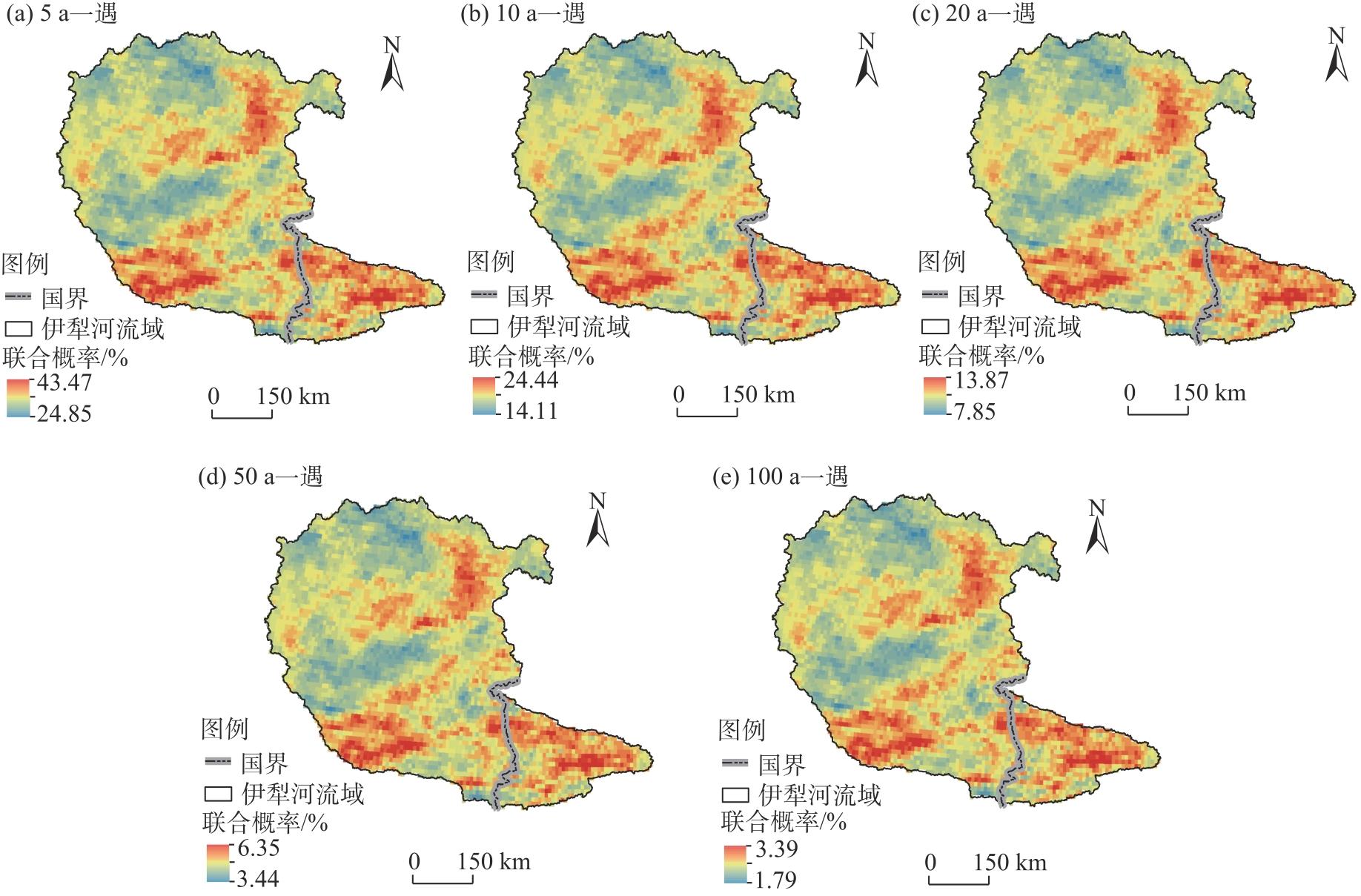

伊犁河是连接中国新疆与哈萨克斯坦的重要跨境河流，近年来流域内干旱形势日益严峻。基于1980—2023年ERA5-Land数据，以标准化降水蒸散指数（SPEI）为评价指标，结合Theil-Sen斜率、游程理论和概率分布函数等方法，从多时间尺度探讨伊犁河流域气象干旱时空特征。结果表明：（1） 1980—2023年伊犁河流域春季、夏季、秋季和年尺度SPEI整体均显著下降（P<0.05），年尺度SPEI存在约7 a和13 a的振荡周期。（2）月、季、年尺度下，近44 a伊犁河流域的干旱发生率均呈增加趋势，干旱烈度均显著加剧（P<0.05）。（3） 2020—2023年伊犁河流域干旱特征突出，干旱发生率和干旱烈度均处于近44 a高值。（4）干旱历时和干旱烈度正相关性强，二者的重现期阈值空间分布特征相近，联合概率与同现概率空间格局基本一致。（5）空间上，巴尔喀什湖周边和中国境内部分是伊犁河流域干旱化趋势明显，且易发生极端干旱事件的典型区域，应加强该区域的干旱监测与风险预警体系建设。研究结果可为伊犁河流域干旱灾害风险防控与适应性管理提供科学依据。

关键词: 气象干旱, SPEI, 游程理论, Copula函数, 伊犁河流域

Abstract:

The Ili River, a key transboundary river linking Xinjiang, China, and Kazakhstan, has experienced increasingly severe droughts. Based on ERA5-Land reanalysis data (1980—2023) and using the standardized precipitation evapotranspiration index (SPEI) as the evaluation metric, the multi-timescale spatiotemporal characteristics of meteorological drought in the Ili River Basin were systematically analyzed using the Theil-Sen slope, run theory, and probability distribution functions. Results indicate that (1) From 1980 to 2023, the SPEI exhibited a significant declining trend in spring, summer, autumn, and annually (P<0.05), with a quasi-periodic oscillation of ~7 and ~13 years at the annual scale. (2) Over the past 44 years, drought frequency increased, and drought severity significantly intensified (P<0.05) at monthly, seasonal, and annual scales. (3) Drought conditions were most severe from 2020 to 2023, with drought frequency and intensity reaching their highest values in 44 years. (4) Drought duration was strongly positively correlated with severity, with similar spatial patterns of their return periods and consistent joint and cooccurrence probabilities. (5) Spatially, areas around Lake Balkhash and parts of the Ili River Basin in China were identified as drought hotspots, exhibiting pronounced drying trends and frequent extreme events; thus, strengthening drought monitoring and early warning systems in these regions is essential. These findings provide a scientific basis for drought risk prevention and adaptive management in the Ili River Basin.

Key words: meteorological drought, SPEI, run theory, Copula function, Ili River Basin

周悦, 鲁瑞洁, 黄梦真. 伊犁河流域多时间尺度气象干旱时空特征[J]. 干旱区地理, 2026, 49(5): 894-906.

ZHOU Yue, LU Ruijie, HUANG Mengzhen. Spatiotemporal characteristics of multi-timescale meteorological drought in the Ili River Basin[J]. Arid Land Geography, 2026, 49(5): 894-906.

图/表 16

图1

表1

图2

图3

图4

图5

图6

图7

图8

图9

图10

图11

图12

表2

图13

图14

参考文献 38

[1]	Mondal S K, Mishra A, Leung R, et al. Global droughts connected by linkages between drought hubs[J]. Nature Communications, 2023, 14(1): 144, doi: 10.1038/s41467-022-35531-8. pmid: 36627287
[2]	Yuan X, Wang Y M, Ji P, et al. A global transition to flash droughts under climate change[J]. Science, 2023, 380(6641): 187-191. doi: 10.1126/science.abn6301 pmid: 37053316
[3]	UNCCD. Global drought snapshot 2023[R]. Bonn: United Nations Convention to Combat Desertification, 2023.
[4]	Christian J I, Martin E R, Basara J B, et al. Global projections of flash drought show increased risk in a warming climate[J]. Communications Earth & Environment, 2023, 4(1): 165, doi: 10.1038/s43247-023-00826-1.
[5]	Hao Z C, Singh V P. Drought characterization from a multivariate perspective: A review[J]. Journal of Hydrology, 2015, 527: 668-678. doi: 10.1016/j.jhydrol.2015.05.031
[6]	Mishra A K, Singh V P. A review of drought concepts[J]. Journal of Hydrology, 2010, 391(1): 202-216. doi: 10.1016/j.jhydrol.2010.07.012
[7]	Tirivarombo S, Osupile D, Eliasson P. Drought monitoring and analysis: Standardised precipitation evapotranspiration index (SPEI) and standardised precipitation index (SPI)[J]. Physics and Chemistry of the Earth, 2018, 106: 1-10.
[8]	Palmer W C. Meteorological drought[M]. Washington: US Department of Commerce, Weather Bureau, 1965: 1-58.
[9]	Vicente-Serrano S M, Beguería S, López-Moreno J I. A multiscalar drought index sensitive to global warming: The standardized precipitation evapotranspiration index[J]. Journal of Climate, 2010, 23(7): 1696-1718. doi: 10.1175/2009JCLI2909.1
[10]	Narasimhan B, Srinivasan R. Development and evaluation of soil moisture deficit index (SMDI) and evapotranspiration deficit index (ETDI) for agricultural drought monitoring[J]. Agricultural and Forest Meteorology, 2005, 133(4): 69-88. doi: 10.1016/j.agrformet.2005.07.012
[11]	Heim Jr R R. A review of twentieth-century drought indices used in the United States[J]. Bulletin of the American Meteorological Society, 2002, 83(8): 1149-1166. doi: 10.1175/1520-0477(2002)083<1149:AROTDI>2.3.CO;2
[12]	陈珍, 蔡朝朝, 马楠, 等. 四种常见气象干旱指数在新疆的适宜性评估[J]. 干旱地区农业研究, 2025, 43(3): 260-269.
	[Chen Zhen, Cai Chaochao, Ma Nan, et al. Applicability study of four meteorological drought indices in Xinjiang, China[J]. Agricultural Research in the Arid Areas, 2025, 43(3): 260-269.]
[13]	王玉娟, 国冬梅. 中哈界河伊犁河流域生态环境演变及其驱动力[J]. 欧亚经济, 2016, 21(4): 100-107.
	[Wang Yujuan, Guo Dongmei. Evolution and driving forces of the ecological environment in the transboundary Ili River Basin between China and Kazakhstan[J]. Russian Central Asian, 2016, 21(4): 100-107.]
[14]	Wang Y J, Lu J X. Hydrological and ecological impacts of water resources development in the Yili River Basin[J]. Journal of Natural Resources, 2009, 24(7): 1297-1307.
[15]	Wu Y F, Liu Y, Li Q, et al. Drought variations in the Yili Basin, northwest China since AD 1673 based on tree-ring width[J]. Forests, 2023, 14(11): 2127, doi: 10.3390/f14112127.
[16]	穆振侠, 田晓杰, 张玉祥, 等. 基于ERA5再分析数据的伊犁河流域干旱灾害风险评估与区划[J]. 水电能源科学, 2024, 42(8): 28-32.
	[Mu Zhenxia, Tian Xiaojie, Zhang Yuxiang, et al. Risk assessment and regionalization of drought disaster in Yili River Basin based on ERA5 reanalysis data[J]. Water Resources and Power, 2024, 42(8): 28-32.]
[17]	汤奇成, 李丽娟. 西北地区主要国际河流水资源特征与可持续发展[J]. 地理学报, 1999, 54(增刊1): 21-28.
	[Tang Qicheng, Li Lijuan. Water resources characteristics and the sustainable development of main international rivers in northwest China[J]. Acta Geographica Sinica, 1999, 54(Suppl.1): 21-28.]
[18]	Kazinform International News Agency. The issue of water resources allocation of the Ili River between China and Kazakhstan can be resolved through negotiations[EB/OL]. [2015-04-15]. https://cn.inform.kz/news/article_a2674790/.
[19]	庄诚, 滑申冰, 刘晓琳, 等. 再分析降水数据ERA5在江淮流域的精确性评估[J]. 水电能源科学, 2025, 43(2): 38-43.
	[Zhuang Cheng, Hua Shenbing, Liu Xiaolin, et al. Accuracy evaluation of reanalysis precipitation data ERA5 in the Yangtze-Huaihe River Basin[J]. Water Resources and Power, 2025, 43(2): 38-43.]
[20]	李敏, 王兴繁, 孙栋元, 等. 基于SPEI的甘肃省气象干旱时空演变特征分析[J]. 水土保持研究, 2025, 32(5): 191-200.
	[Li Min, Wang Xingfan, Sun Dongyuan, et al. Analysis of spatiotemporal evolution characteristics of meteorological droughts in Gansu Province based on SPEI[J]. Research of Soil and Water Conservation, 2025, 32(5): 191-200.]
[21]	Morlet D, Peyrin F, Desseigne P, et al. Time-scale analysis of high-resolution signal-averaged surface ECG using wavelet transformation[C]// Proceedings Computers in Cardiology. IEEE Computer Society, 1991: 393-396.
[22]	He J, Yang X H, Li Z, et al. Spatiotemporal variations of meteorological droughts in China during 1961—2014: An investigation based on multi-threshold identification[J]. International Journal of Disaster Risk Science, 2016, 7: 63-76. doi: 10.1007/s13753-016-0083-8
[23]	先建春, 周青云, 吕平安, 等. 基于标准化降水蒸散指数分析湖南各气候区干旱事件重现期[J]. 中国农业气象, 2024, 45(8): 913-923.
	[Xian Jianchun, Zhou Qingyun, Lü Ping’an, et al. Analysis of recurrence period of drought events in various climatic regions of Hunan Province based on standardized precipitation evapotranspiration index[J]. Chinese Journal of Agrometeorology, 2024, 45(8): 913-923.] doi: 10.3969/j.issn.1000-6362.2024.08.010
[24]	胡玉乾, 胡磊, 孙鹏, 等. 基于非平稳的淮河流域干旱时空演变特征研究[J]. 北京师范大学学报(自然科学版), 2022, 58(1): 116-124.
	[Hu Yuqian, Hu Lei, Sun Peng, et al. Spatio-temporal evolution of drought events in Huaihe River Basin: A non-stationary standardized precipitation evapotranspiration index study[J]. Journal of Beijing Normal University (Natural Science Edition), 2022, 58(1): 116-124.]
[25]	李琼芳, 方凯悦, 韩幸烨, 等. 基于多维Copula函数的澜沧江-湄公河流域气象干旱特征分析[J]. 水资源保护, 2024, 40(1): 52-59.
	[Li Qiongfang, Fang Kaiyue, Han Xingye, et al. Analysis of meteorological drought characteristics in the Lancang-Mekong River Basin based on multi-dimensional Copula function[J]. Water Resources Protection, 2024, 40(1): 52-59.]
[26]	刘京会, 袁旭山, 李艳敏, 等. 基于CMIP6的伊犁河流域极端降水时空特征分析研究[J]. 干旱区地理, 2025, 48(8): 1329-1341. doi: 10.12118/j.issn.1000-6060.2024.634
	[Liu Jinghui, Yuan Xushan, Li Yanmin, et al. Spatio-temporal characteristics of extreme precipitation in the Ili River Basin based on CMIP6[J]. Arid Land Geography, 2025, 48(8): 1329-1341.] doi: 10.12118/j.issn.1000-6060.2024.634
[27]	闫俊杰, 闫敏, 崔东, 等. 近55年新疆伊犁河谷气温和降水变化趋势分析[J]. 水电能源科学, 2017, 35(10): 13-16.
	[Yan Junjie, Yan Min, Cui Dong, et al. Trend analysis of temperature and precipitation in Yilihe Basin near the last 55 years[J]. Water Resources and Power, 2017, 35(10): 13-16.]
[28]	康紫薇, 张正勇, 刘琳, 等. 基于MODIS的新疆地表温度时空变化特征分析[J]. 地理研究, 2022, 41(4): 997-1017. doi: 10.11821/dlyj020210232
	[Kang Ziwei, Zhang Zhengyong, Liu Lin, et al. Spatio-temporal variation characteristics of land surface temperature in Xinjiang based on MODIS[J]. Geographical Research, 2022, 41(4): 997-1017.]
[29]	Yang J H, Li Y Q, Zhou L, et al. Effects of temperature and precipitation on drought trends in Xinjiang, China[J]. Journal of Arid Land, 2024, 16(8): 1098-1117. doi: 10.1007/s40333-024-0105-0
[30]	张巧凤, 于红博, 黄方. 蒙古高原干旱时空特征及对植被物候的累积影响[J]. 干旱区研究, 2024, 41(9): 1548-1559. doi: 10.13866/j.azr.2024.09.11
	[Zhang Qiaofeng, Yu Hongbo, Huang Fang. The spatiotemporal dynamics of drought and the cumulative impact on vegetation phenology in the Mongolian Plateau[J]. Arid Zone Research, 2024, 41(9): 1548-1559.] doi: 10.13866/j.azr.2024.09.11
[31]	Cao L L, Xu C C, Suo N J, et al. Future dry-wet climatic characteristics and drought trends over arid Central Asia[J]. Frontiers in Earth Science, 2023, 11: 1102633, doi: 10.3389/feart.2023.1102633.
[32]	Li Y P, Chen Y N, Li Z. Dry/wet pattern changes in global dryland areas over the past six decades[J]. Global and Planetary Change, 2019, 178: 184-192. doi: 10.1016/j.gloplacha.2019.04.017
[33]	李稚, 李玉朋, 李鸿威, 等. 中亚地区干旱变化及其影响分析[J]. 地球科学进展, 2022, 37(1): 37-50. doi: 10.11867/j.issn.1001-8166.2021.124
	[Li Zhi, Li Yupeng, Li Hongwei, et al. Analysis of drought change and its impact in Central Asia[J]. Advances in Earth Science, 2022, 37(1): 37-50.] doi: 10.11867/j.issn.1001-8166.2021.124
[34]	彭宇, 李发东, 徐宁, 等. 1990—2019 年中亚五国干旱状况时空变化特征及大气涛动驱动分析[J]. 中国生态农业学报, 2021, 29(2): 312-324.
	[Peng Yu, Li Fadong, Xu Ning, et al. Spatial-temporal variations in drought conditions and their climatic oscillations in Central Asia from 1990 to 2019[J]. Chinese Journal of Eco-Agriculture, 2021, 29(2): 312-324.]
[35]	李子龙, 穆振侠. 基于综合干旱指数的伊犁河流域干旱多变量概率特征研究[J]. 干旱地区农业研究, 2024, 42(4): 249-261.
	[Li Zilong, Mu Zhenxia. Drought multivariable probability characteristics in the Yili River Basin based on comprehensive drought index[J]. Agricultural Research in the Arid Areas, 2024, 42(4): 249-261.]
[36]	刘海, 姜亮亮, 刘冰, 等. 近40年中国干旱特征及其对植被变化的影响[J]. 生态学报, 2023, 43(19): 7936-7949.
	[Liu Hai, Jiang Liangliang, Liu Bing, et al. Characteristics of drought in China and its effect on vegetation change in recent 40 years[J]. Acta Ecologica Sinica, 2023, 43(19): 7936-7949.]
[37]	李明, 胡炜霞, 王贵文, 等. 基于Copula函数的中国东部季风区干旱风险研究[J]. 地理科学, 2019, 39(3): 506-515. doi: 10.13249/j.cnki.sgs.2019.03.017
	[Li Ming, Hu Weixia, Wang Guiwen, et al. Drought risk in monsoon area of the eastern China based on Copula function[J]. Scientia Geographica Sinica, 2019, 39(3): 506-515.] doi: 10.13249/j.cnki.sgs.2019.03.017
[38]	Sun Y, Chen X, Yu Y, et al. Spatiotemporal characteristics of drought in Central Asia from 1981 to 2020[J]. Atmosphere, 2022, 13(9): 1496, doi: 10.3390/atmos13091496.

站点名称	月降水量	2 m高度月平均气温
博乐	0.711	0.994
霍尔果斯	0.602	0.996
霍城	0.400	0.991
温泉	0.763	0.994
精河	0.581	0.995
乌苏	0.607	0.995
察布查尔	0.590	0.991
伊宁	0.635	0.990
尼勒克	0.773	0.994
伊宁县	0.568	0.996
巩留	0.646	0.992
新源	0.843	0.995
昭苏	0.883	0.995
特克斯	0.845	0.993
巴音布鲁克	0.851	0.971

函数	最优面积占比/%
函数	AIC	RMSE
Clayton	21.95	0.35
Frank	78.05	73.69
Gumbel	0.00	25.95
